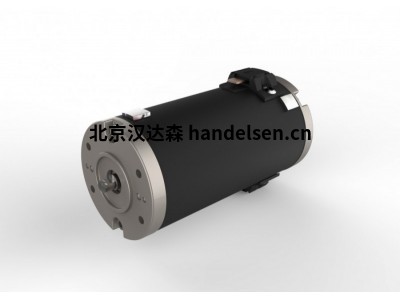

Parvalux直流電動機PM10 DC Motor Family

Parvalux直流電動機PM10 DC Motor Family



技術              直流永磁有刷電動機

功率              23-120瓦

速度              1500-4000轉/分

扭矩              0.14-0.18牛米

Parvalux PM10是一款永磁刷電機，專為需要頻繁換向的應用而設計。它是彈簧負載的安靜運行有一個高啟動扭矩3倍滿載。它有一個可調的電刷搖桿，以確保最大的電刷壽命和提供良好的換向。其壓力壓鑄機殼確保同心氣隙和正確的軸承對準。我們?yōu)槟峁┒喾N定制的軸。我們的應用和工程團隊也有廣泛的應用特定知識，所以請立即致電或發送電子郵件給我們，為您的產品需求提供完美的解決方案。

電動機類型              PMDC公司

變速箱              僅限電機

扭矩              0.14-0.18牛米

速度              1500-4000轉/分

功率              23-120瓦

制動器              對

電容器尺寸              不

軸徑              不

軸特征              平孔鍵槽

軸材料              鋼/不銹鋼

軸輸出              可根據要求提供單端或雙端

接線盒              不

接線盒位置              不

電壓              12直流-220直流

重量              1.12千克

比率              不

極              不

階段              不

油漆              不

噪聲級              不

安裝              B14/M56，IEC

IP等級              防護等級54

絕緣等級              F

外殼材料              壓鑄鋅合金

齒輪材料              不

框架類型              PARVALUX框架

編碼器              對

圈地              全封閉式

效率              不

效率等級              不

占空比              續

當前              *聯系銷售支持了解負載電流

連接              飛線300mm

所獲證書              不
