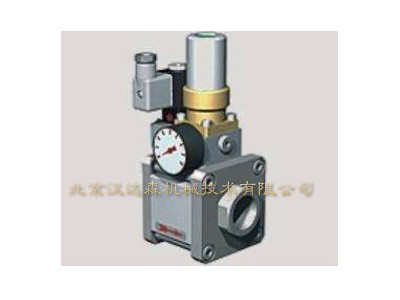

co-ax同軸閥FK 80 DR簡介

吳亞男
QQ：2853369884

手機：17718583804
電話：010-64714988-212
傳真：010-64714988-668
郵件：tk2@handelsen.cn

吳亞男郵箱：tk2@handelsen.cn電話：010-64714988-212

co-ax同軸閥FK 80 DR簡介

特性

端口法蘭 PN 16

功能 NC

壓力范圍 0-16 bar

A B max. 16 bar

B A max. 5 bar

A C max. 16 bar

C A max. 16 bar

KV值 55,0 m³/h

co-ax同軸閥FK 80 DR簡介

介質 氣態 液態 高粘稠凝膠狀高污染

流向見壓力范圍

開關周期 20 1/min

開關時間打開 600 ms

關閉 800 ms

介質溫度 DC -20 °C — +80 °C

AC -20 °C — +80 °C

環境溫度 DC -20 °C — +80 °C

AC -20 °C — +80 °C

重量 48,8 kg

標稱電壓 Un 24 V DC

Un 230 V 40-60 Hz AC

驅動 DC 直流電磁鐵

AC 內置式整流器的直流電磁鐵

絕緣等級 H 180 °C

防護等級 IP65

負載率 ED 100%

連接按DIN EN175301-803標準的插頭, 形式A 4個位置X90°, 電線直徑 6-8 mm

閥門的設計是基于介質和工況的要求.這些因素可能導致設計、密封材料和特性與通用參數表上的規格有所不同.
